Sinbosen 2 input 6 output karaoke processor professional sound system audio digital processor

FOB Reference Price:Get Latest Price
$200.00 - $215.00 / Unit | 1 Unit/Units (Min. Order)
Type:
Audio Mixers Audio Digital Processor Processor
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Sinbosen
Model Number:
PA2

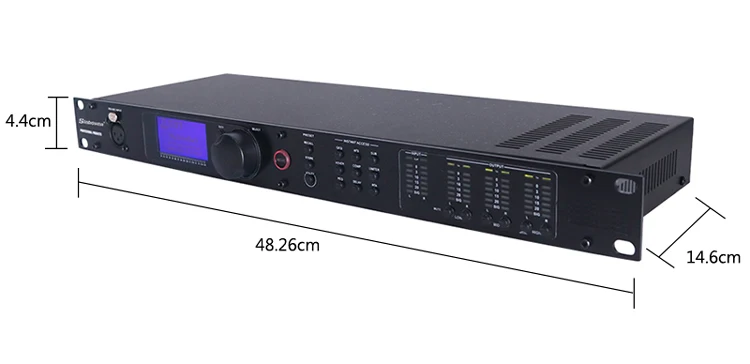

Dimension (L x W x H):
4.4cm (H) X 14.6cm (D) X 48.26cm (W)
Power:
22 Watts
Frequency Range (Hz):
20 Hz – 20 kHz, +0 /- 0.5 dB
Voltage:
100-120 VAC 50/60 Hz OR 220-240 VAC 50/60 Hz
Processor Name:
PA2 Digital Processor
Processor Type:
Wireless Digital Processor
Number of Inputs:
2 Line Inputs, 1 Rta Mic Input
Number of Outputs:
6 Line Outputs
THD+Noise:
0.003% Typical at +4 Dbu, 1 kHz, 0 dB Input Gain
Frequency Response:
20 Hz – 20 kHz, +0 /- 0.5 dB
Power Consumption:
22 Watts
Warranty:
2 Years
Service:
OEM Service
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Strong carton packaging.
Port
Guangzhou

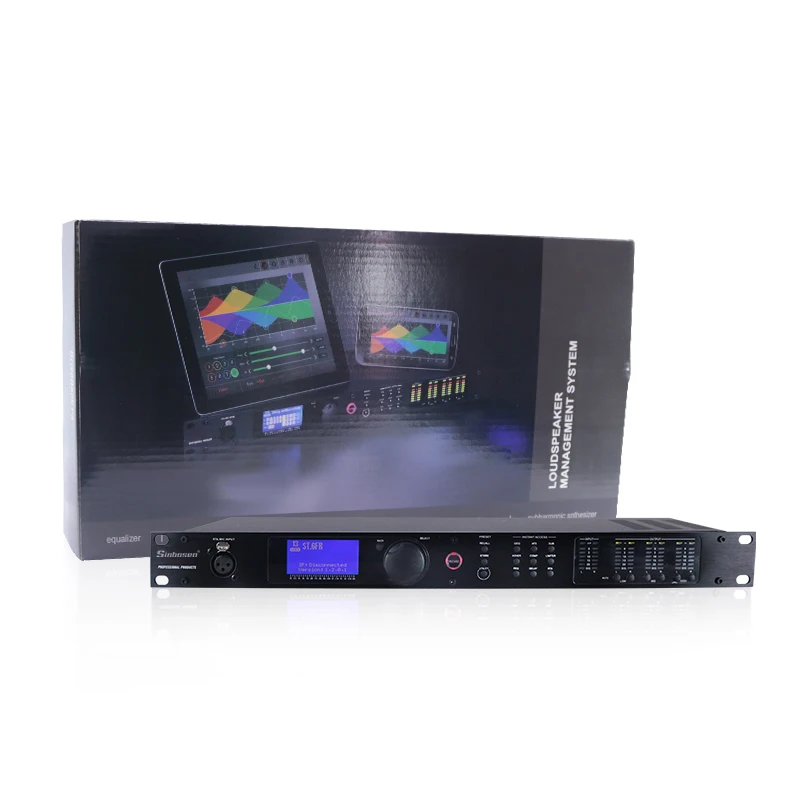

Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 7 To be negotiated

Sinbosen 2 input 6 output karaoke processor professional sound system audio digital processor

Product Description

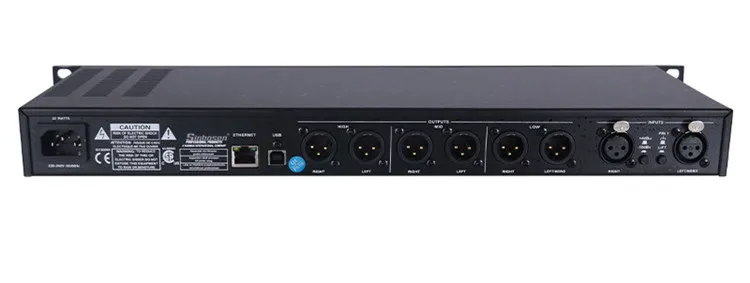

ANALOG INPUTS
Number of Inputs2 line inputs, 1 RTA mic input
Connectors2 female XLR line inputs, 1 female XLR RTA mic input
TypeElectronically balanced/RF filtered
Impedance> 50 kΩ
Max Input Level (line inputs)> +20 dBu
CMRR> 45 dB
RTA Mic Preamp Phantom Power+15 VDC
ANALOG OUTPUTS
Number of Outputs6 line outputs
ConnectorsMale XLR
TypeElectronically balanced, RF filtered
Impedance120 Ω
Max Output Level+20 dBu
Alignment DelayUp to 10ms per output channel pair
A/D PERFORMANCE
A/D Converter24-bit with dbx Type IV™ Conversion System
A/D Dynamic Range112 dB A-weighted, 110 dB unweighted
Type IV Dynamic Range123 dB with transient material, A-weighted, 22kHz BW;
121 dB with transient material, unweighted, 22kHz BW;
115 dB typical with program material, A-weighted, 22kHz BW
D/A PERFORMANCE
D/A Converter24-bit
D/A Dynamic Range112 dB A-weighted, 110 dB unweighted
SYSTEM PERFORMANCE
Internal Processing Wordlength32-bit floating point
Sample Rate48 kHz
Dynamic Range110 dB A-weighted
107 dB unweighted
THD+Noise0.003% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response20 Hz - 20 kHz, +0 /- 0.5 dB
Interchannel Crosstalk< -110 dB, -120 dB typical (input-to-output: < -100 dB)
LatencyInput to output: 1.847 ms
POWER SUPPLY
Operating Voltage100-120 VAC 50/60 Hz or 220-240 VAC 50/60 Hz
Power Consumption22 Watts



DBXPA processor (10).jpgDBXPA-processor-(13.jpgDBX PA Processor26.jpgDBX PA Processor28.jpgDBX PA Processor32.jpgDBX PA Processor33.jpgDBX PA Processor25.jpg

Processor Features:

Stereo feedback suppressor 2×12 group fast tracking notch filter.
Dual 28-segment graphic equalizer.
120A subharmonizer.
2×3, 2×4, 2×5, 2×6 crossover combination selection.
Stereo multi-parameter equalizer.
Stereo output limiter.
Speaker fine-tuning delay.
Pink noise generator.
Auto-EQ automatic room equalization compensation.
25 factory presets / 25 user settings program memory.
2 sets of inputs, 6 sets of outputs.

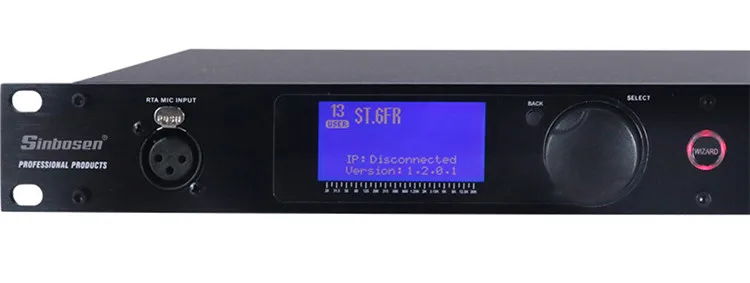

RTA-M real-time spectrum analysis microphone input is set on the panel with phantom power.
24-Bit A/D converter provides dynamic range greater than 110dB.

Graphic LCD display.

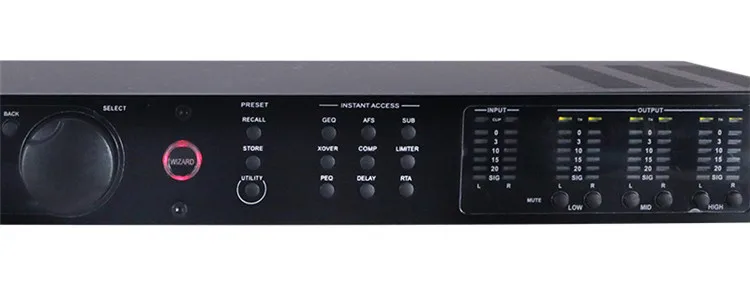

Front Panel Input and Output Meters.
AFS™ Wizard Helps Eliminate Feedback.
Stereo Feedback Elimination with 12 feedback notch filters
