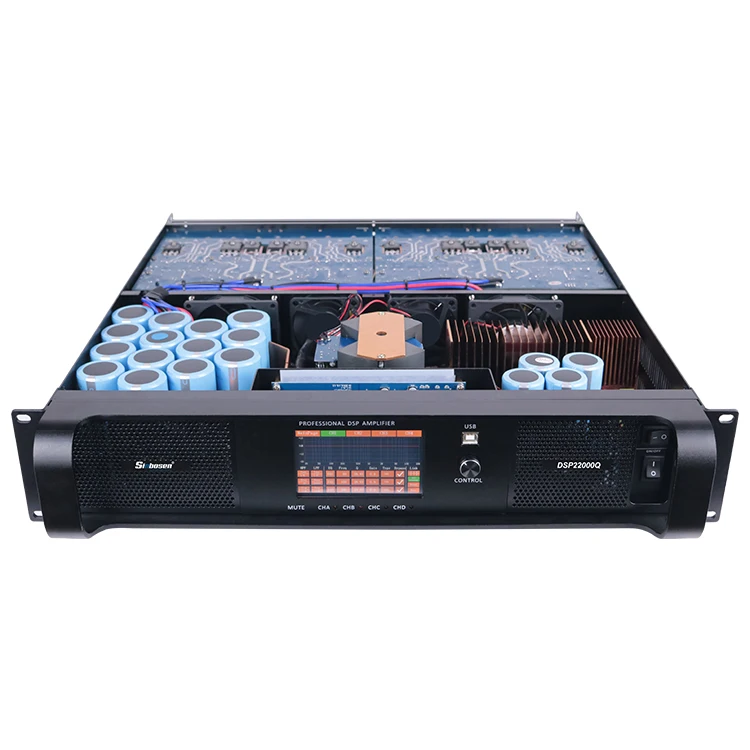

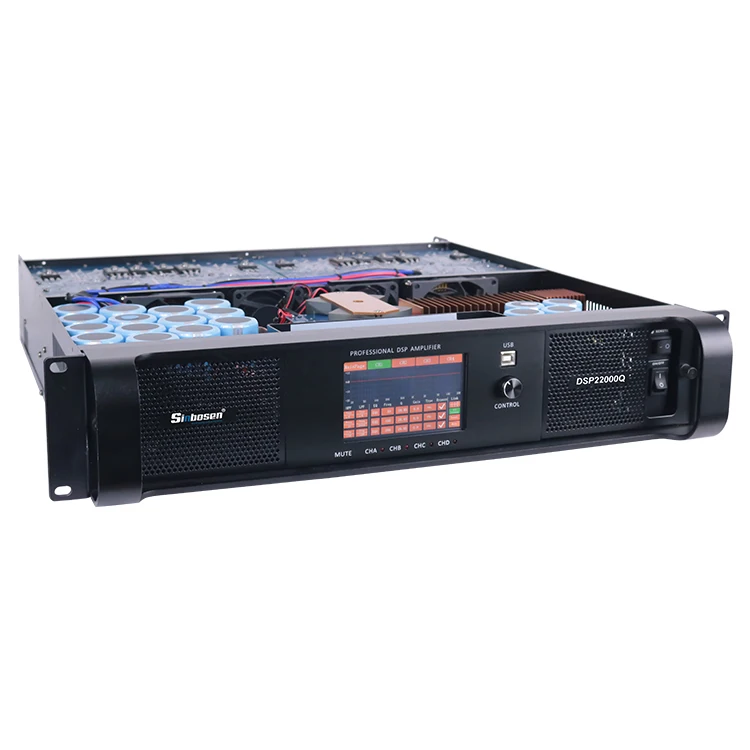

Sinbosen Professional Sound 4 Channel 10000 Watt Power Amplifier DSP22000q DJ DSP Amplifier

FOB Reference Price:Get Latest Price
$500.00 - $1,000.00 / Unit | 1 Unit/Units (Min. Order)
Color:
Black
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 6 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Sinbosen
Model Number:
DSP22000Q
Type:
Professional Amplifier
Channels:
4
Amplifier Type:
DSP Power Amplifier
Color:
Black
Voltage:
AC 220V / AC 110V
Frequency Response:
20Hz-34KHz
Function:
DSP Function Touch screen
Feature:
3600UF 200V/New Cooling System
Application:
Bar, Party, Concert, Show, Conference
Certification:
CE ,ROHS
warranty:
3 years
Service:
OEM service
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Packing dimensions:580*180*560 mm
Port
Guangzhou
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 6 To be negotiated
Video Description

Sinbosen Professional Sound 4 Channel 10000 Watt Power Amplifier DSP22000q DJ DSP Amplifier

Product detail



DSP22000Q
8 ohm Stereo Power  (RMS)2500WX4
4 ohm Stereo Power  (RMS)4650WX4
8 ohm Bridged Power (RMS)9500WX2
4 ohm Bridged Power (RMS)23750WX2
Frequency Response(+o/-0.3dB,1W/8Ω):20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1W:<0.1%
Signal-to-Noise Ratio:>112 dBA
Channel separation (Crosstalk) at 1 kHz :>70 dB
Input Connectors (per channel):3 pin XLR, electronically balanced
Output Connectors (per channel):Binding Posts 2-pole
Class:TD
TourClass Protection:ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 220V / 110V nominal:180-240 V / 90-130 V selectable
Voltage Gain(dB):23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance:20 kOhm
Level adjustment (per ch.):Front panel potentiometer, 31 positions detented from -inf to 0 dB



Product introduction


sinbosen dsp-10q(15).jpg

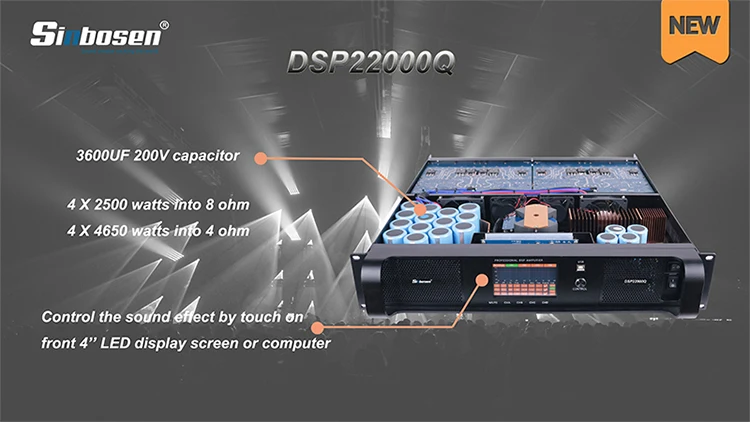

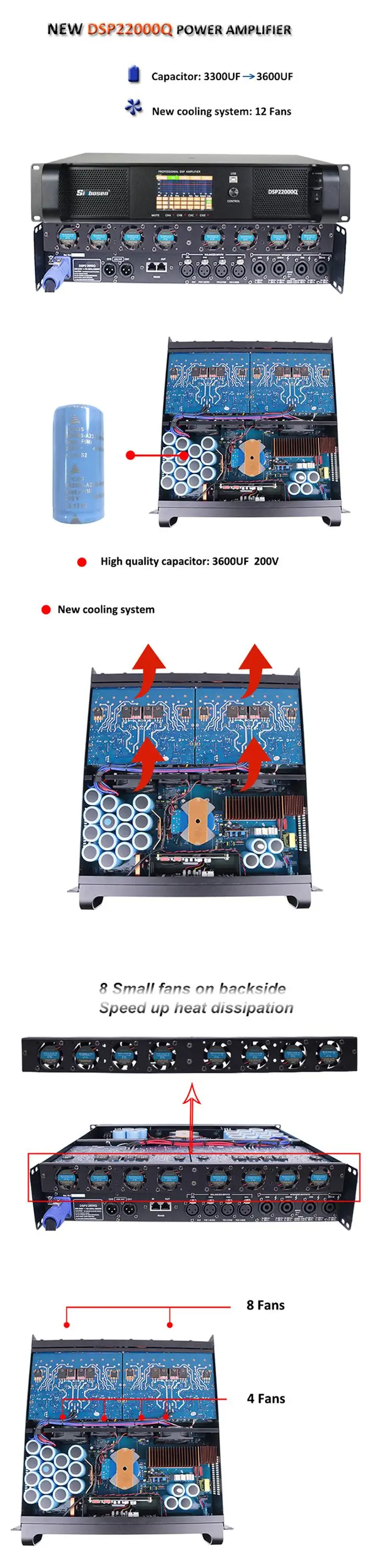

Capacitor Upgrade

The old one is 3300UF 200V and now the new is 3600UF 200V. Totally add more 300UF capacity. The amplifier power supply board is better than before, it will make your subwoofer bass sound quality more loud and powerful.

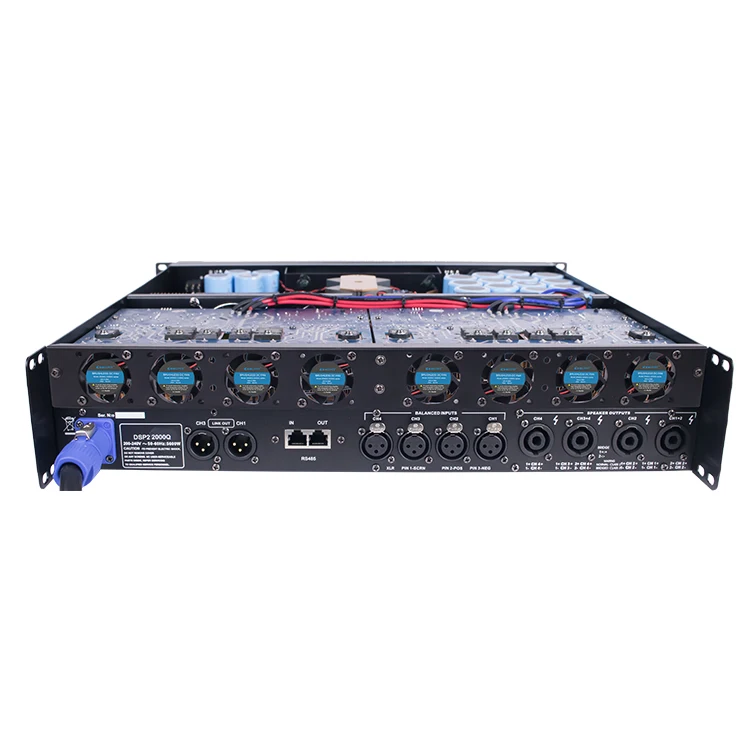

New cooling system

We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.




 DSP22000Q (1).jpgDSP22000Q (2).jpgDSP22000Q (6).jpg



Feature


4 Channel Class TD Switching power amplifier with DSP.
4 x 4,650 Watts into 4 Ohms, 4 x 2,500 Watts into 8 Ohms.
Create SUPER sound quality.
Control the sound effect by Touch on front 4" LED display screen.
Or control the sound effect by Computer.
Simple DSP software,no need install,easy operate it.
Bridge-mode operation for Touring Applications.
Comprehensive protection scheme .
